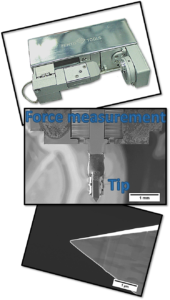

In-situ Nanoindenter – Femtotools FT-NMT03

This intrinsically displacement controlled in-situ Nanoindenter can perform mechanical testing in a SEM. Due to the additional Heating stage it can perform tests at 600 °C.

Operation modii:

  • Nanoindentierung with Berkovich-, Cube Corner- or spherical geometry
  • Micropillar Compression
  • Micro-Tensil Testing
  • Fatigue Testing
  • Microcantilever Fracture Testing
  • Manipulation of Structures
  • Scratch-Testing

Specifications:

  • max Force 200 mN
  • max. Displacement: 25 µm
  • Depth resolution >0.05 nm
  • Force resulution >0.5 nN
  • Positioning resolution 1 nm
  • max. CSM Frequency 500 Hz
  • max. measuring frequency 96 kHz
